- NL-Rxxx-YPu
Y/P Positioners
NXL U-Type series is ideal for demanding operational environments where precision alignment and reliability are critical, ensuring seamless integration into defense, aerospace, and industrial automation systems.
- U TYPE
Rotatıng system
TWO AXIS POSITIONER

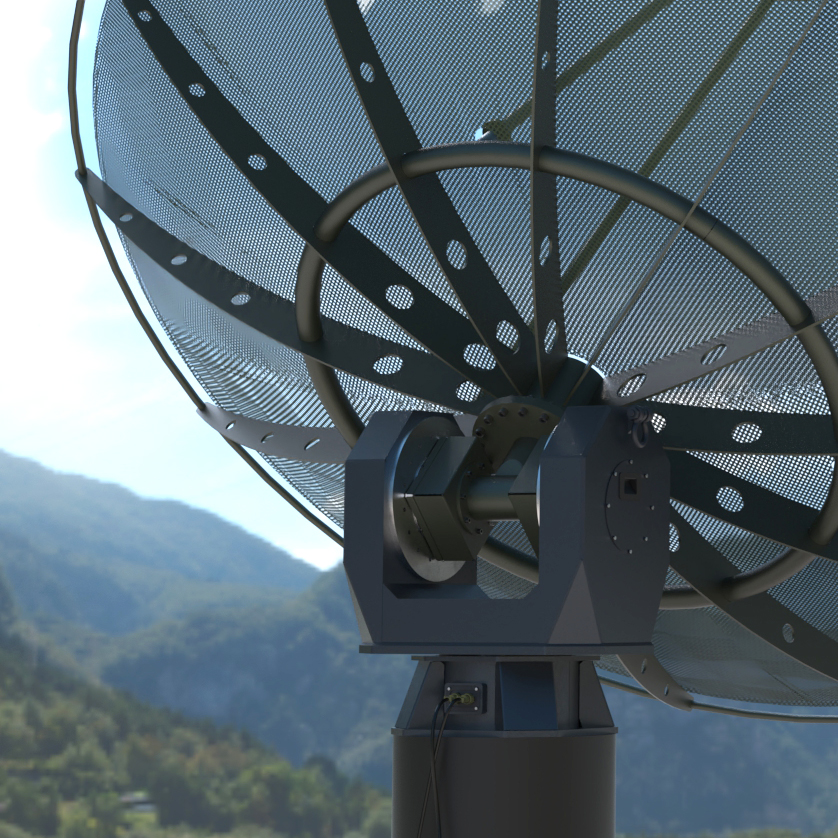

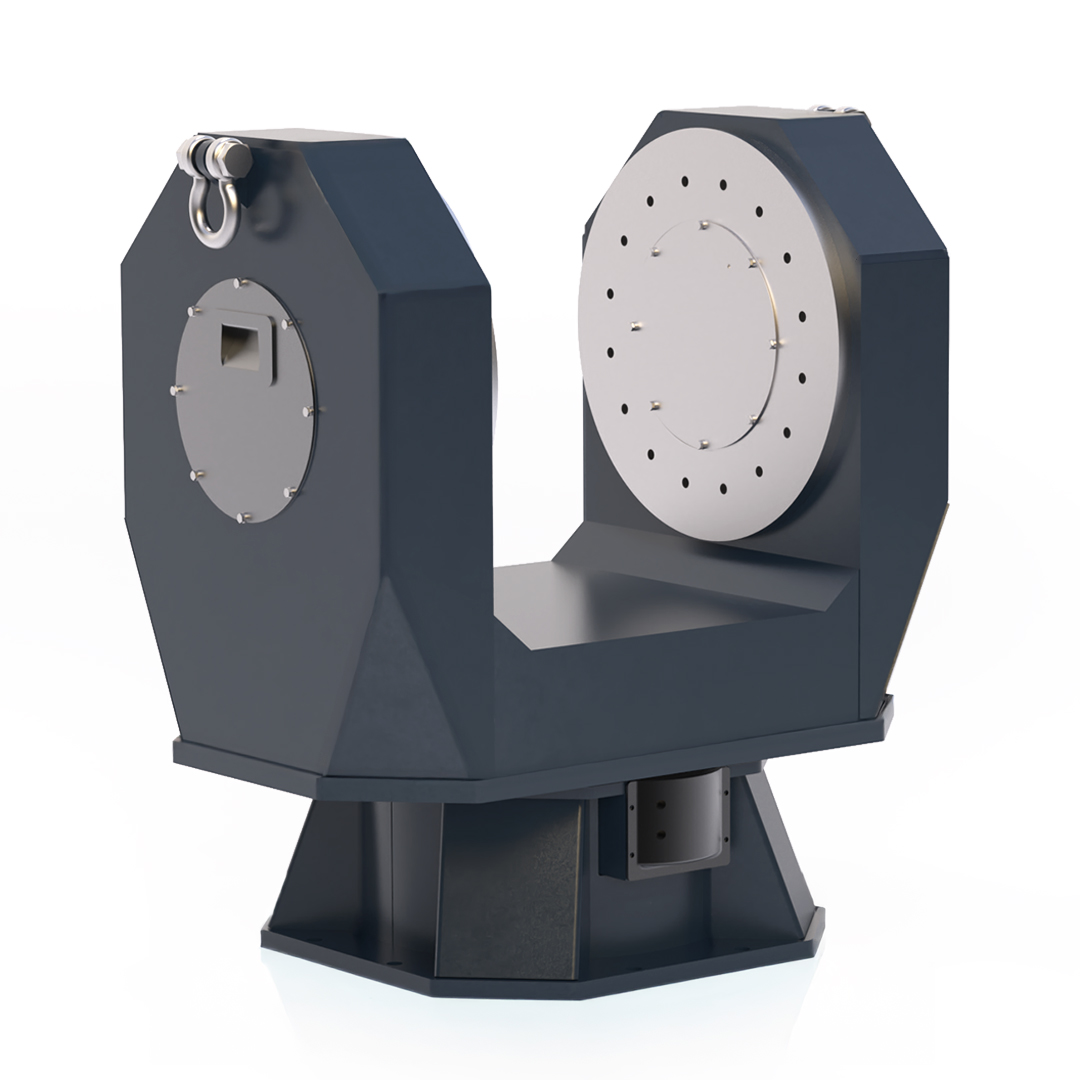

NXL U-Type Y/P Positioners provide an open-frame structure that enhances mechanical balance and stability. U-type design allows for precise control over elevation and azimuth axes while accommodating a wide range of payload configurations, including radar systems, optical sensors, and antenna arrays.
With an emphasis on structural rigidity and dynamic response, these positioners incorporate high-efficiency servo systems and advanced motion control algorithms to deliver smooth and stable positioning.
U Type Yaw/Pitch positioners have options with payload capacities from 500 kg to 10,000 kg.
-185°
to
+185°
Operating Range (deg)
-20 C°
to
+55 C°
Operating Temperature
±0.02°
Standart Repeability (deg)
