  • LIGHT+ SERIES
Rotatıng system

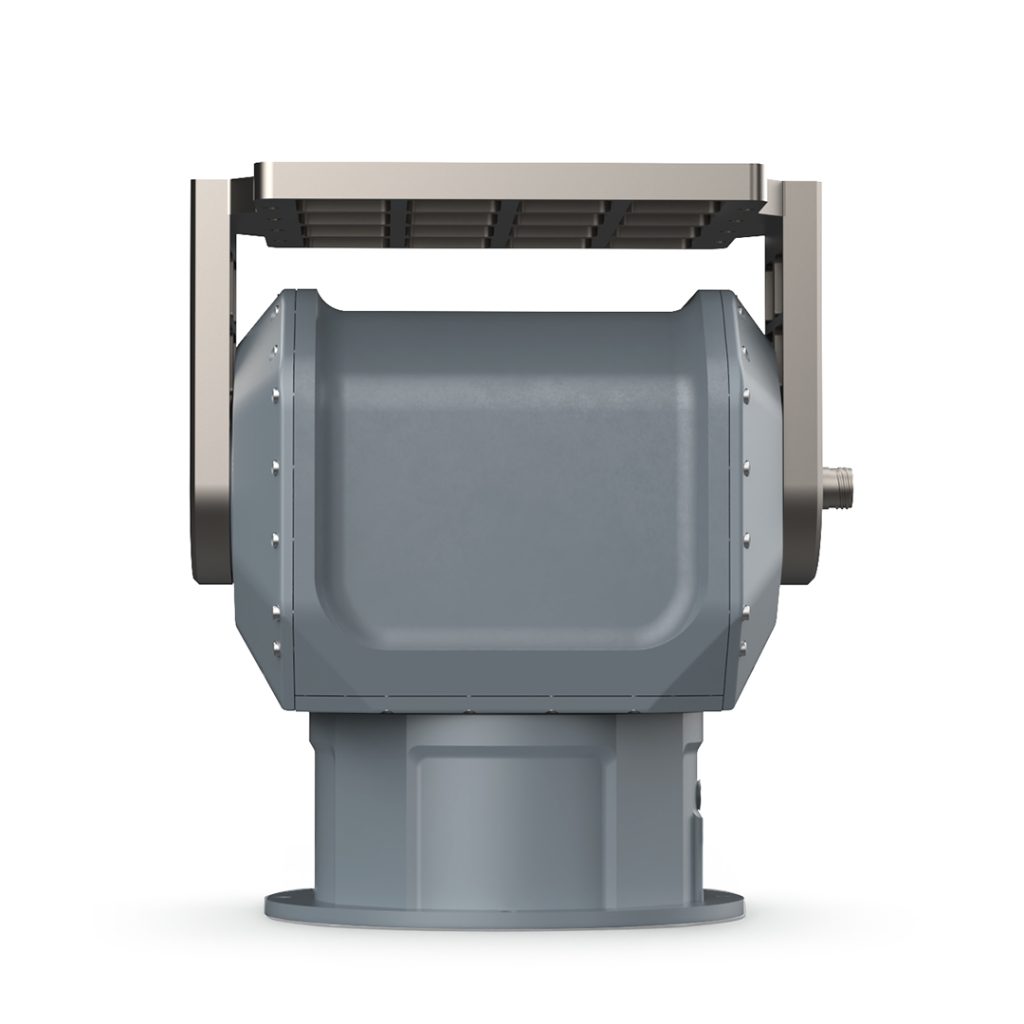

TWO AXIS POSITIONER

Next Level Robotics’ Yaw & Pitch Positioners ensure precise two-axis alignment for defense, aerospace, and industrial applications. Built with high-precision servo systems and a robust structure, they deliver stability and reliability in demanding conditions.

Light+ series Yaw Pitch Positioners are available with payload options from 20 kg to 5000 kg. You can explore Heavy Duty Series or Light Series for yaw pitch positioners with different load capacity.

-185°

to

+185°

Operating Range (deg)

-20 C°

to

+55 C°

Operating Temperature

±0.02°

Standart Repeability (deg)

Yaw & Pitch Positioners | Light+

TECHNICAL SPECIFICATIONS

Table with Subheaders
NXL Positioner Product Code Bending Moment (N.m) Vertical Load (kg) Nominal Torque (N.m) Maximum Torque (N.m) Power (kW) Nom. Speed (°/s) Max. Speed (°/s) Stand.Repeatability (deg) Operating Range (deg) Height (mm) Width / Depth (mm) Weight (kg)
YawPitch YawPitch YawPitch YawPitch
NL-R5-YP 100 5 20 30 30 37.2 0.4 0.4 50 75 ±0.03 ±185 ±95 250 200x200 20
NL-R20-YP 250 20 50 60 75 74.4 0.4 0.4 50 75 ±0.03 ±185 ±95 350 250x250 30
NL-R50-YP 550 50 100 100 150 124 0.4 0.4 50 75 ±0.03 ±185 ±95 400 300x300 50
NL-R100-YP 600 100 120 250 180 310 0.4 0.4 50 75 ±0.03 ±185 ±95 400 300x300 50

Yaw & Pitch Positioners | Light+

OPTIONAL FEATURES

-55 C° to +90° Operating Temperature
Serial Communication
±0.005 Position Repeatability
Slipring
Fixture

For additional details or custom solutions, please contact our team directly.
